PI3301-21-LGIZ, PI3311-00-LGIZ, 8V to 36Vin Cool-Power ZVS Buck Regulator

  PI33XX‐X0‐LGIZ Cool‐Power® 8V to 36Vin Cool‐Power® ZV.
The PI33XX is a family of high efficiency, wide input range DC‐DC ZVS‐Buck regulators integrating controller, power switches, and .

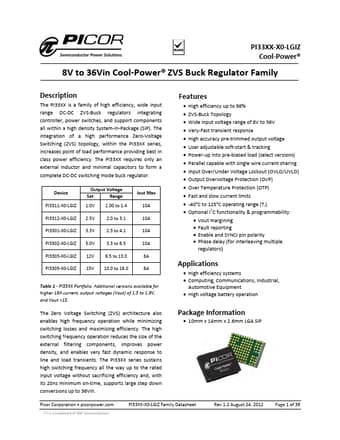

datasheet Preview Page 1 from Datasheet4u.com

PI3311-00-LGIZ-Picor.pdf

PI3301-21-LGIZ Datasheet Preview — This datasheet PDF includes multiple part numbers: PI3301-21-LGIZ, PI3311-00-LGIZ. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PI3301-21-LGIZ, PI3311-00-LGIZ

Manufacturer:

Picor

File Size:

1.41 MB

Description:

8V to 36Vin Cool-Power ZVS Buck Regulator

Note:

This datasheet PDF includes multiple part numbers: PI3301-21-LGIZ, PI3311-00-LGIZ.
Please refer to the document for exact specifications by model.

Features

* High efficiency up to 98%
* ZVS‐Buck Topology
* Wide input voltage range of 8V to 36V
* Very‐Fast transient response
* High accuracy pre‐trimmed output voltage
* User adjustable soft‐start & tracking
* Power‐up into pre‐biased load (select versions)
* Paral

Applications

* High efficiency systems
* Computing, Communications, Industrial, Automotive Equipment
* High voltage battery operation The Zero Voltage Switching (ZVS) architecture also enables high frequency operation while minimizing Package Information
* 10mm x 14mm x 2.6m
