PI3301-21, PI3311-01, ZVS Switching Regulators

Cool-Power® ZVS Switching Regulators PI33xx-x1 8V to 36VIN, 15A Cool-Power ZVS Buck Regulator Product .
The PI33xx-x1 is a family of high efficiency, wide input range DCDC ZVS-Buck regulators integrating controller, power switches, and support components.

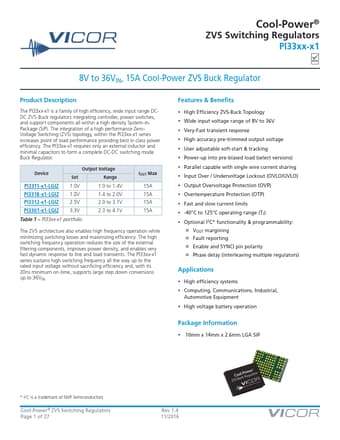

datasheet Preview Page 1 from Datasheet4u.com

PI3311-01-VICOR.pdf

PI3301-21 Datasheet Preview — This datasheet PDF includes multiple part numbers: PI3301-21, PI3311-01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PI3301-21, PI3311-01

Manufacturer:

VICOR

File Size:

1.75 MB

Description:

ZVS Switching Regulators

Note:

This datasheet PDF includes multiple part numbers: PI3301-21, PI3311-01.
Please refer to the document for exact specifications by model.

Features

* & Benefits
* High Efficiency ZVS-Buck Topology
* Wide input voltage range of 8V to 36V
* Very-Fast transient response
* High accuracy pre-trimmed output voltage
* User adjustable soft-start & tracking
* Power-up into pre-biased load (select versi

Applications

* High efficiency systems
* Computing, Communications, Industrial, Automotive Equipment
* High voltage battery operation Package Information
* 10mm x 14mm x 2.6mm LGA SiP
* I2C is a trademark of NXP Semiconductors Cool-Power® ZVS Switching Regulators Page
