PI3311-01 - ZVS Switching Regulators

VICOR

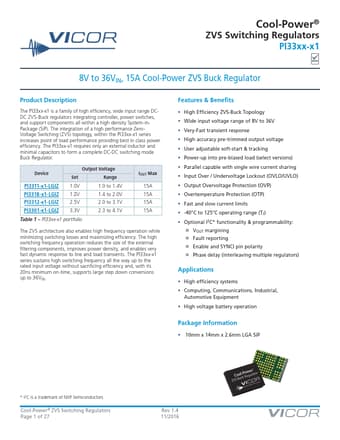

PI3311-01 Datasheet Preview — Preview of PI3311-01 PDF

Datasheet Details

Part number	PI3311-01
Manufacturer	VICOR
File Size	1.75 MB
Description	ZVS Switching Regulators
Datasheet	PI3311-01-VICOR.pdf

PI3311-01 Product details

Description

The PI33xx-x1 is a family of high efficiency, wide input range DCDC ZVS-Buck regulators integrating controller, power switches, and support components all within a high density System-inPackage (SiP).

Features

& Benefits.
High Efficiency ZVS-Buck Topology.
Wide input voltage range of 8V to 36V.
Very-Fast transient response.
High accuracy pre-trimmed output voltage.
User adjustable soft-start & tracking.
Power-up into pre-biased load (select versions).
Parallel capable with single wire current sharing.
Input Over / Undervoltage Lockout (OVLO/UVLO).
Output Overvoltage Protection (OVP).
Overtemperature Pro.
