PI3311-00 - ZVS Switching Regulators

VICOR

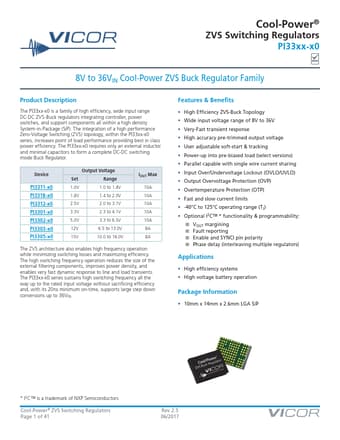

PI3311-00 Datasheet Preview — Preview of PI3311-00 PDF

Datasheet Details

Part number	PI3311-00
Manufacturer	VICOR
File Size	3.02 MB
Description	ZVS Switching Regulators
Datasheet	PI3311-00-VICOR.pdf

PI3311-00 Product details

Description

The PI33xx-x0 is a family of high efficiency, wide input range DC‑DC ZVS-Buck regulators integrating controller, power switches, and support components all within a high density System-in-Package (SiP).

Features

& Benefits.
High Efficiency ZVS-Buck Topology.
Wide input voltage range of 8V to 36V.
Very-Fast transient response.
High accuracy pre-trimmed output voltage.
User adjustable soft-start & tracking.
Power-up into pre-biased load (select versions).
Parallel capable with single wire current sharing.
Input Over/Undervoltage Lockout (OVLO/UVLO).
Output Overvoltage Protection (OVP).
Overtemperature Protection (OTP.
