PI3311-00-LGIZ - 8V to 36Vin Cool-Power ZVS Buck Regulator

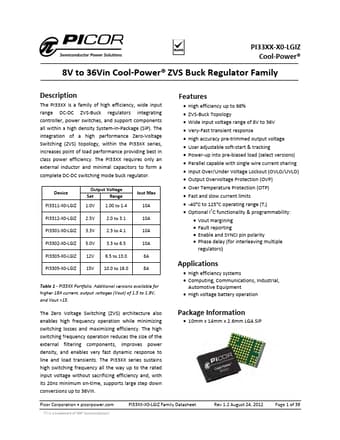

PI3311-00-LGIZ Datasheet Preview — Preview of PI3311-00-LGIZ PDF

Datasheet Details

Part number	PI3311-00-LGIZ
Manufacturer	Picor
File Size	1.41 MB
Description	8V to 36Vin Cool-Power ZVS Buck Regulator
Datasheet	PI3311-00-LGIZ-Picor.pdf

PI3311-00-LGIZ Product details

Description

The PI33XX is a family of high efficiency, wide input range DC‐DC ZVS‐Buck regulators integrating controller, power switches, and support components all within a high density System‐in‐Package (SiP).

Features

High efficiency up to 98% .
ZVS‐Buck Topology .
Wide input voltage range of 8V to 36V .
Very‐Fast transient response .
High accuracy pre‐trimmed output voltage.
User adjustable soft‐start & tracking .
Power‐up into pre‐biased load (select versions) .
Parallel capable with single wire current sharing .
Input Over/Under Voltage Lockout (OVLO/UVLO) .
Output Overvoltage Protection (OVP) .
Over Temperature Protection (OTP) .
Fast and slo.
