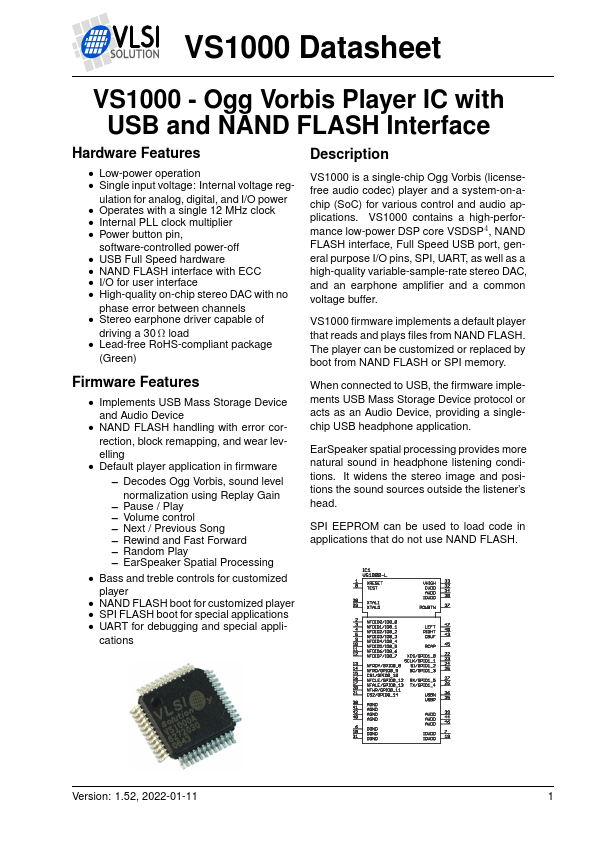

VS1000 - Ogg Vorbis Player

VS1000 is a single-chip Ogg Vorbis (licensefree audio codec) player and a system-on-achip (SoC) for various control and audio applications. VS1000 contains a high-performance low-power DSP core VSDSP4, NAND FLASH interface, Full Speed USB port, general purpose I/O pins, SPI, UART, as well as a high-.

VS1000 Features

* Low-power operation

* Single input voltage: Internal voltage reg- ulation for analog, digital, and I/O power

* Operates with a single 12 MHz clock

* Internal PLL clock multiplier

* Power button pin, software-controlled power-off

* USB Full Speed hard
