2N5686, 2N5685 - NPN HIGH POWER SILICON TRANSISTOR

2N5686 Description

NPN HIGH POWER SILICON TRANSISTOR .

2N5686 Features

* JAN, JANTX and JANTXV Qualified to MIL-PRF-19500/464

2N5686 Applications

* TO-3 (TO-204AA) Package Style ELECTRICAL PERFORMANCE PARAMETER OFF CHARACTERISTICS Collector
* Emitter Breakdown Voltage Collector
* Emitter Cutoff Current Emitter
* Base Cutoff Current Collector
* Emitter Cutoff Current Collector
* Emitter Cutoff C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2N5686, 2N5685. Please refer to the document for exact specifications by model.

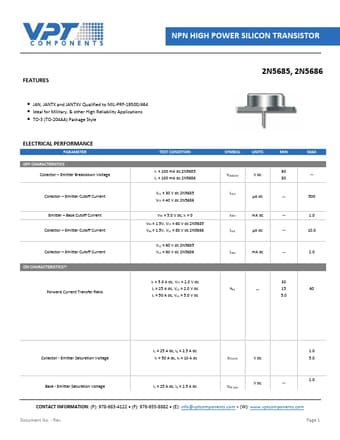

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N5686, 2N5685
Manufacturer
VPT
File Size
569.28 KB
Datasheet
2N5685-VPT.pdf
Description
NPN HIGH POWER SILICON TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: 2N5686, 2N5685.
Please refer to the document for exact specifications by model.
