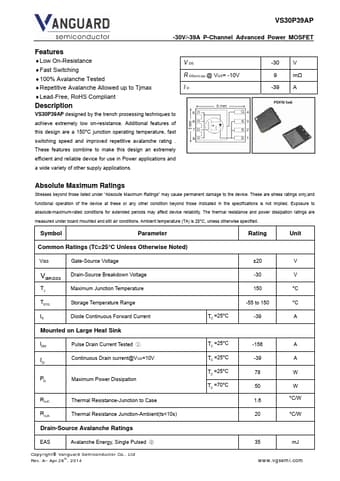

VS30P39AP Datasheet, Mosfet, Vanguard Semiconductor

VS30P39AP Features

• Mosfet Low On-Resistance Fast Switching 100% Avalanche Tested Repetitive Avalanche Allowed up to Tjmax Lead-Free, RoHS Compliant Description VS30P39AP designed by the trench processing te

PDF File Details

Part number:

VS30P39AP

Manufacturer:

Vanguard Semiconductor

File Size:

265.06kb

Download:

📄 Datasheet

Description:

P-channel advanced power mosfet. VS30P39AP designed by the trench processing techniques to achieve extremely low on-resistance. Additional features of this design are

VS30P39AP Application

• Applications and a wide variety of other supply applications. V DS R DS(on),typ @ VGS= -10V ID -30 V 9 mΩ -39 A Absolute Maximum Ratings Stresses
