VS3401AL - P-Channel Advanced Power MOSFET

VS3401AL Description

.

VS3401AL Features

* P-Channel,-2.5V Logic Level Control
* Enhancement mode
* Fast Switching
* Pb-free lead plating; RoHS compliant VS3401AL -30V/-3.8A P-Channel Advanced Power MOSFET V DS R DS(on) ,TYP @VGS=-4.5V R DS(on) ,TYP @VGS=-2.5V ID -30 V 62 mΩ 81 mΩ -3.8 A SOT23-3L Part ID VS3401AL Packa

📥 Download Datasheet

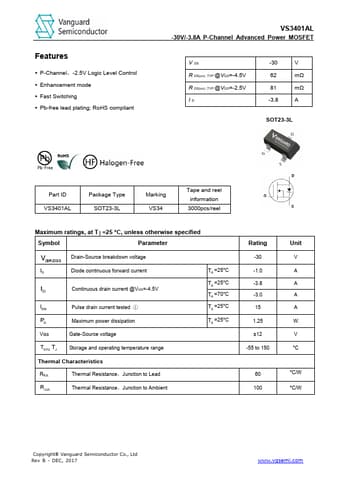

Preview of VS3401AL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3401AL
Manufacturer
Vanguard Semiconductor
File Size
768.46 KB
Datasheet
VS3401AL-VanguardSemiconductor.pdf
Description
P-Channel Advanced Power MOSFET
