VS3415AC

P-Channel Advanced Power MOSFET

VS3415AC Features

* Enhancement mode

* Fast Switching

* ESD Protection HBM ±400V

* Pb-free lead plating; RoHS compliant VS3415AC -20V/-3.4A P-Channel Advanced Power MOSFET V DS R DS(on),TYP @VGS=-4.5V R DS(on),TYP @VGS=-2.5V R DS(on),TYP @VGS=-1.8V ID -20 V 60 mΩ 85 mΩ 125 mΩ -3.4 A SOT23

VS3415AC Datasheet (684.43 KB)

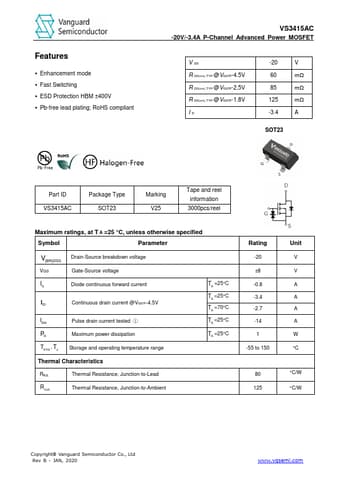

Preview of VS3415AC PDF

Datasheet Details

Part number:

VS3415AC

Manufacturer:

Vanguard Semiconductor

File Size:

684.43 KB

Description:

P-channel advanced power mosfet.
