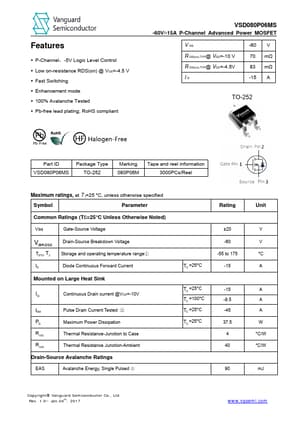

VSD080P06MS Datasheet - Vanguard Semiconductor

P-Channel Advanced Power MOSFET

* P-Channel，-5V Logic Level Control

* Low on-resistance RDS(on) @ VGS=-4.5 V

* Fast Switching

* Enhancement mode

* 100% Avalanche Tested

* Pb-free lead plating; RoHS compliant VSD080P06MS -60V/-15A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP V

VSD080P06MS

Vanguard Semiconductor

349.90 KB

P-channel advanced power mosfet.
