VSD080N06MS Datasheet - Vanguard Semiconductor

VSD080N06MS-VanguardSemiconductor.pdf

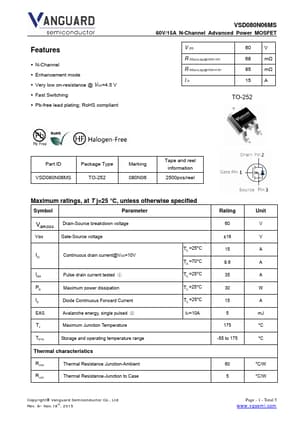

Preview of VSD080N06MS PDF
VSD080N06MS Datasheet Preview Page 2 VSD080N06MS Datasheet Preview Page 3

Datasheet Details

Part number:

VSD080N06MS

Manufacturer:

Vanguard Semiconductor

File Size:

272.52 KB

Description:

N-channel advanced power mosfet.

VSD080N06MS, N-Channel Advanced Power MOSFET

VSD080N06MS Features

* N-Channel

* Enhancement mode

* Very low on-resistance @ VGS=4.5 V

* Fast Switching

* Pb-free lead plating; RoHS compliant VSD080N06MS 60V/15A N-Channel Advanced Power MOSFET V DS R DS(on),typ@VGS=10V R DS(on),typ@VGS=4.5V ID 60 V 68 mΩ 85 mΩ 15 A TO-252 Part ID Package Ty
