VSP040P10MS - P-Channel Advanced Power MOSFET

Name: VSP040P10MS
SKU: VSP040P10MS-1300618

Vanguard Semiconductor

The VSP040P10MS by Vanguard Semiconductor is a P-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VSP040P10MS
Manufacturer	Vanguard Semiconductor
File Size	369.49 KB
Description	P-Channel Advanced Power MOSFET
Datasheet	VSP040P10MS-VanguardSemiconductor.pdf

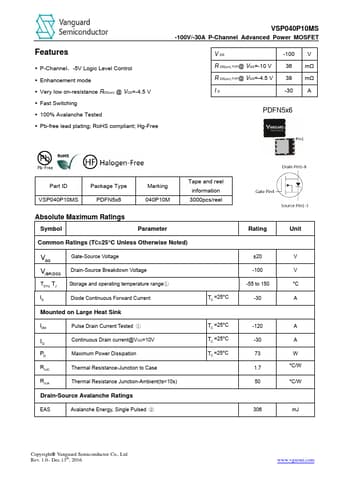

Additional preview pages of the VSP040P10MS datasheet.

P-Channel，-5V Logic Level Control.
Enhancement mode.
Very low on-resistance RDS(on) @ VGS=-4.5 V.
Fast Switching.
100% Avalanche Tested.
Pb-free lead plating; RoHS compliant; Hg-Free VSP040P10MS -100V/-30A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS=-4.5 V ID -100 36 38 -30 V mΩ mΩ A PDFN5x6 Part ID VSP040P10MS Package Type PDFN5x6 Marking 040P10M Tape and reel information 3000pcs/reel Absolute Maximum Ratings Symbol Pa.
