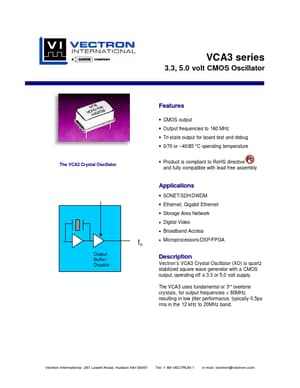

VCA3 CMOS Oscillator

Vectron’s VCA3 Crystal Oscillator (XO) is quartz stabilized square wave generator with a CMOS output, operating off a 3.3 or 5.0 volt supply. The VCA3 uses fundamental or 3rd overtone crystals, for output frequencies < 80MHz, resulting in low jitter performance, typically 0.5ps rms in the 12 kHz to .

VCA3 Features

* CMOS output

* Output frequencies to 160 MHz

* Tri-state output for board test and debug

* 0/70 or

* 40/85 °C operating temperature

* Product is compliant to RoHS directive and fully compatible with lead free assembly The VCA3 Crystal Oscillator Appl
