VS-50SQ080-M3

Schottky Rectifier

Vishay Semiconductors

VS-50SQ080-M3 Features

* 175 °C TJ operation

* Low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness and long term reliability

* De

VS-50SQ080-M3 General Description

The VS-50SQ axial leaded Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes.

VS-50SQ080-M3 Datasheet (127.13 KB)

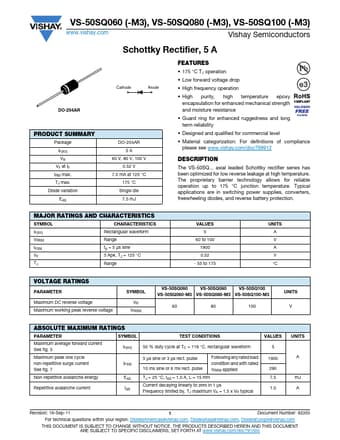

VS-50SQ080-M3 Datasheet Preview — Preview of VS-50SQ080-M3 PDF

Datasheet Details

Part number:

VS-50SQ080-M3

Manufacturer:

Vishay ↗ Semiconductors

File Size:

127.13 KB

Description:

Schottky rectifier.
VS-50SQ060 (-M3), VS-50SQ080 (-M3), VS-50SQ100 (-M3) www.vishay.com Vishay Semiconductors Schottky Rectifier, 5 A DO-204AR Cathode Anode PRODUC.
