DG611 Datasheet, Switches, Vishay Siliconix

DG611 Features

  • Switches
  • Fast switching - tON: 12 ns
  • Low charge injection: ± 2 pC
  • Wide bandwidth: 500 MHz
  • 5 V CMOS logic compatible
  • Low RDS(on): 18 

PDF File Details

Part number:

DG611

Manufacturer:

Vishay ↗ Siliconix

File Size:

179.62kb

Download:

📄 Datasheet

Description:

High-speed / low-glitch d/cmos analog switches. The DG611, DG612, DG613 feature high-speed lowcapacitance lateral DMOS switches. Charge injection has been minimized to optimize perf

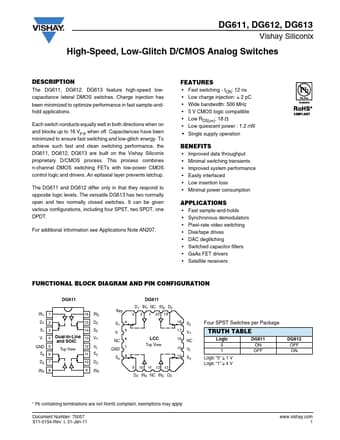

Datasheet Preview: DG611 📥 Download PDF (179.62kb)
Page 2 of DG611 Page 3 of DG611

DG611 Application

  • Applications Each switch conducts equally well in both directions when on and blocks up to 16 Vp-p when off. Capacitances have been minimized to en
