DG642 Datasheet, Switches, Vishay Siliconix

DG642 Features

• Switches D D D D D D D Wide Bandwidth: 500 MHz Low Crosstalk at 5 MHz:
    –85 dB Low rDS(on): 5 W , DG642 TTL Logic Compatible Fast Switching: tON 50 ns Single Supply Compatibility

PDF File Details

Part number:

DG642

Manufacturer:

Vishay ↗ Siliconix

File Size:

103.97kb

Download:

📄 Datasheet

Description:

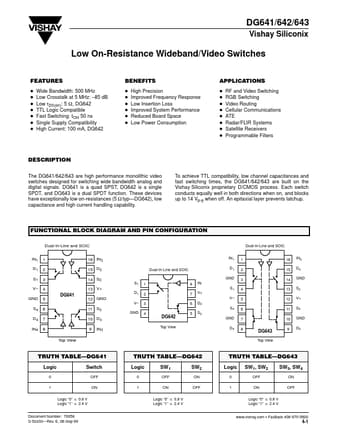

Low on-resistance wideband/video switches. The DG641/642/643 are high performance monolithic video switches designed for switching wide bandwidth analog and digital signals. DG

DG642 Application

• Applications D D D D D D D D RF and Video Switching RGB Switching Video Routing Cellular Communications ATE Radar/FLIR Systems Satellite Receivers P
