DG612 - High-Speed / Low-Glitch D/CMOS Analog Switches

Vishay Siliconix

📥 Download Datasheet

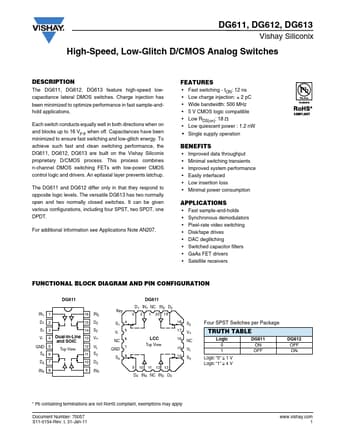

DG612 Datasheet Preview — Preview of DG612 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: DG612
Manufacturer: Vishay ↗ Siliconix
File Size: 179.62 KB
Datasheet: DG612_VishaySiliconix.pdf
Description: High-Speed / Low-Glitch D/CMOS Analog Switches

DG612 Product details

Description

The DG611, DG612, DG613 feature high-speed lowcapacitance lateral DMOS switches.

Features

Fast switching - tON: 12 ns.
Low charge injection: ± 2 pC.
Wide bandwidth: 500 MHz.
5 V CMOS logic compatible.
Low RDS(on): 18 .
Low quiescent power : 1.2 nW.
Single supply operation.
