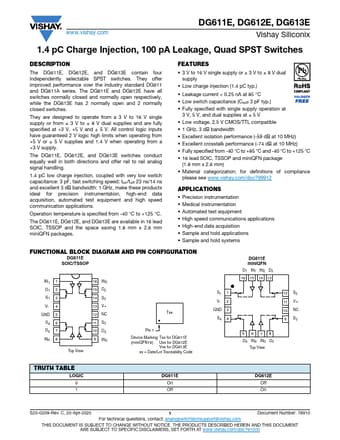

DG612E Datasheet, Switches, Vishay

DG612E Features

• Switches
• 3 V to 16 V single supply or ± 3 V to ± 8 V dual supply
• Low charge injection (1.4 pC typ.)
• Leakage current < 0.25 nA at 85 °C
• Low switch capacita

PDF File Details

Part number:

DG612E

Manufacturer:

Vishay ↗

File Size:

435.30kb

Download:

📄 Datasheet

Description:

Quad spst switches. The DG611E, DG612E, and DG613E contain four independently selectable SPST switches. They offer improved performance over the industry

DG612E Application

• Applications Operation temperature is specified from -40 °C to +125 °C. The DG611E, DG612E, and DG613E are available in 16 lead SOIC, TSSOP and the
