IFSC-1515AH-01 - Shielded Ferrite Power Inductors

Vishay Siliconix

IFSC-1515AH-01 Description

www.vishay.com IFSC-1515AH-01 Vishay Dale Low Profile, Shielded Ferrite Power Inductors LINKS TO ADDITIONAL RESOURCES Product Page .
IFSC-1515AH-01 MODEL 3.

IFSC-1515AH-01 Features

* 4.0 mm x 4.0 mm x 1.8 mm SMD package
* Low profile inductors from 0.47 μH to 330 μH
* Wirewound ferrite core encapsulated with iron embedded epoxy for magnetic shielding
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 APP

IFSC-1515AH-01 Applications

* DC/DC power supplies
* LCD displays
* Noise suppression and filtering
* Lighting drivers
* Battery powered devices STANDARD ELECTRICAL SPECIFICATIONS PART NUMBER L0 INDUCTANCE ± 20 % AT 100 kHz, 0.25 V, 0 A (μH) DCR TYP. 25 °C (mΩ) IFSC1515AHERR47M01 IF

📥 Download Datasheet

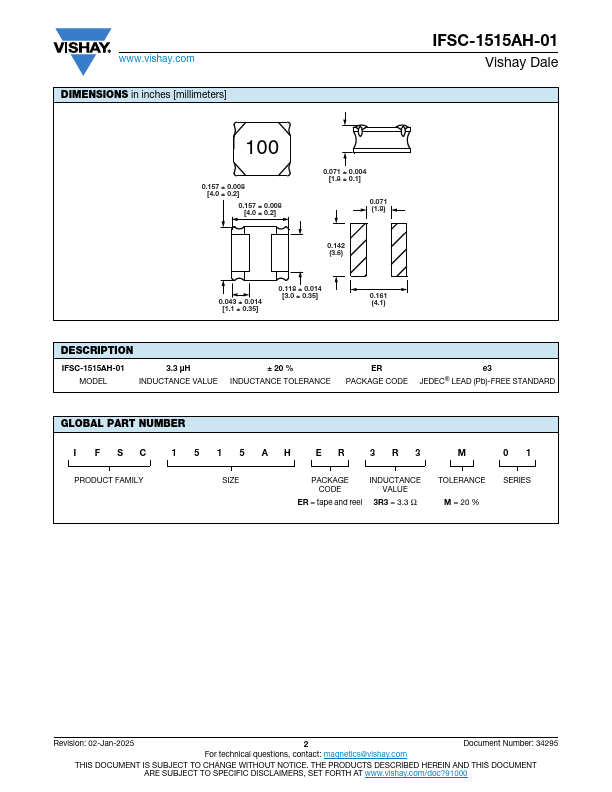

IFSC-1515AH-01 Datasheet Preview — Preview of IFSC-1515AH-01 PDF

Datasheet Details

Part number: IFSC-1515AH-01
Manufacturer: Vishay ↗ Siliconix
File Size: 85.45 KB
Datasheet: IFSC-1515AH-01-VishaySiliconix.pdf
Description: Shielded Ferrite Power Inductors
