IFSC-3232DB-01 - Semi-Shielded SMD Power Inductors

Product Overview

Vishay

Datasheet Details

Part number	IFSC-3232DB-01
Manufacturer	Vishay
File Size	94.51 KB
Description	Semi-Shielded SMD Power Inductors
Datasheet	IFSC-3232DB-01 Datasheet

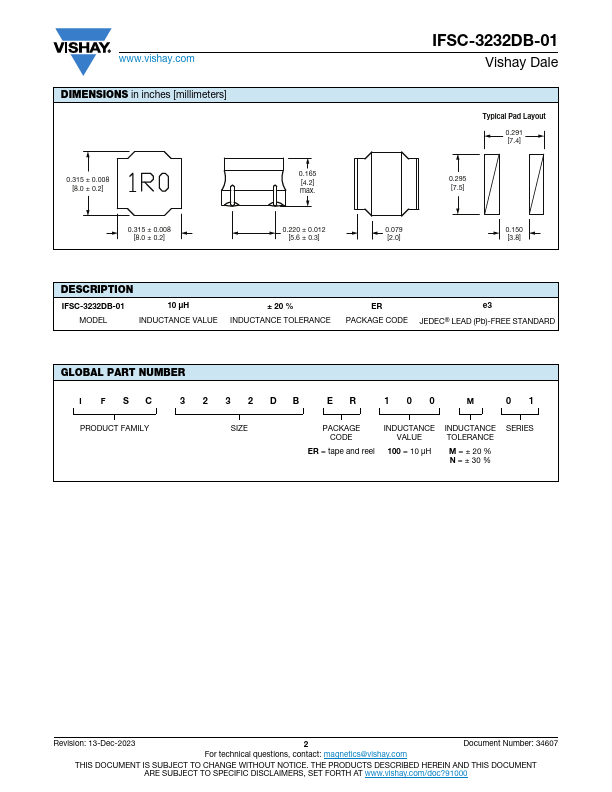

Additional preview pages of the IFSC-3232DB-01 datasheet.

Product details

Description

IFSC-3232DB-01 10 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I F SC 3 2 3 2DB ER 100 M 01 PRODUCT FAMILY SIZE PACKAGE CODE ER = tape and reel INDUCTANCE VALUE 100 = 10 μH INDUCTANCE TOLERANCE M = ± 20 % N = ± 30 % SERIES Revision: 13-Dec-2023 2 Document Number: 34607 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIB

Features

Semi-shielded ferrite construction.
8.0 mm x 8.0 mm x 4.2 mm SMD package.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 8 mm.
