* Low Switching Losses
* Low VCEsat
* Tvj op = 150°C Mechanical Features
* High Power and Thermal Cycling Capability
* Isolated Base Plate
* Copper Base Plate
* Standard Housing Module Label Code Barcode Code 128 DMX - Code prepared by: CM app
IFS150B12N3E4_B31 Datasheet (688.08 KB)
IFS150B12N3E4_B31
688.08 KB
Igbt.

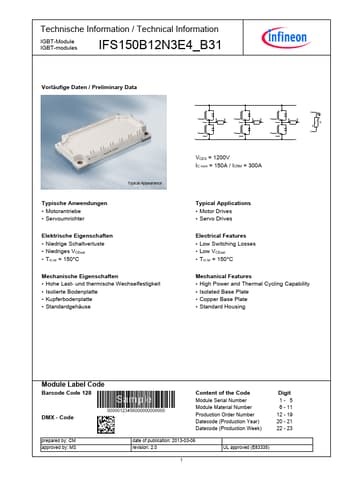

Technische Information / Technical Information
IGBT-Module IGBT-modules
IFS150B12N3E4_B31
Vorläufige Daten / Preliminary Data
Typische Anwendungen .
