IFSC-2020DE-01 Datasheet - Vishay

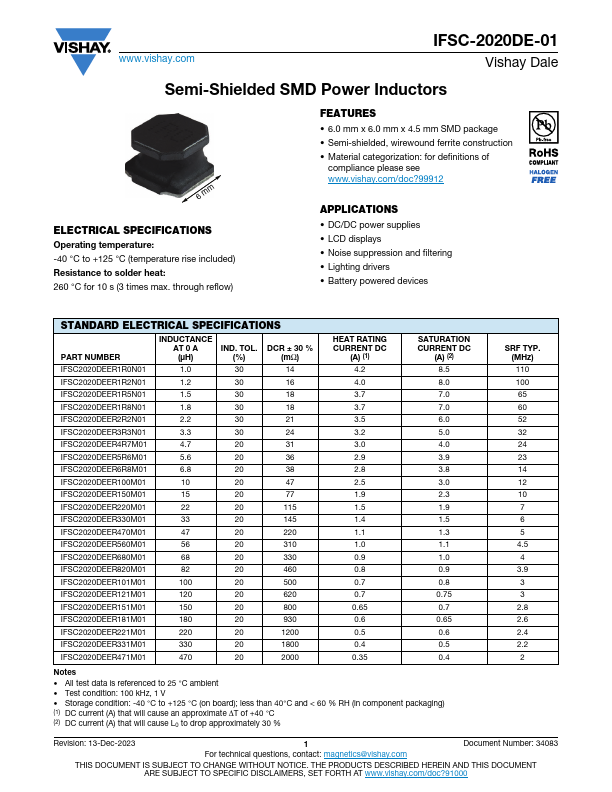

IFSC-2020DE-01, Semi-Shielded SMD Power Inductors

www.vishay.com IFSC-2020DE-01 Vishay Dale Semi-Shielded SMD Power Inductors 6 mm ELECTRICAL SPECIFICATIONS Operating temperature: -40 °C to +125 °C.
IFSC-2020DE-01 10 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER.

datasheet Preview Page 1 from Datasheet4u.com

IFSC-2020DE-01-Vishay.pdf

IFSC-2020DE-01 Datasheet Preview — Preview of IFSC-2020DE-01 PDF

Datasheet Details

Part number:

IFSC-2020DE-01

Manufacturer:

Vishay ↗

File Size:

79.47 KB

Description:

Semi-Shielded SMD Power Inductors

Features

* 6.0 mm x 6.0 mm x 4.5 mm SMD package
* Semi-shielded, wirewound ferrite construction

Applications

* DC/DC power supplies
* LCD displays
* Noise suppression and filtering
* Lighting drivers
* Battery powered devices STANDARD ELECTRICAL SPECIFICATIONS PART NUMBER INDUCTANCE AT 0 A IND. TOL. DCR ± 30 % (μH) (%) (mΩ) IFSC2020DEER1R0N01 1.0 30 14 I

IFSC-2020DE-01 Distributors
