IFS100V12PT4 IGBT

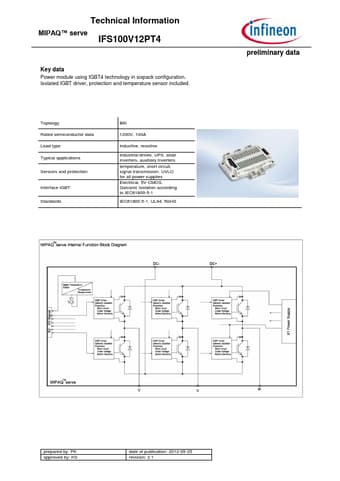

Technical Information MIPAQ™ serve IFS100V12PT4 Key data Power module using IGBT4 technology in sixpack configuration. Isolated IGBT driver, protection and temperature sensor included. Topology Rated semiconductor data Load type Typical applications Sensors and protection Interface IGBT Standards B6I 1200V, 100A Inductive, resistive Industrial drives, UPS, solar inverters, auxiliary inverters temperature, short circuit, signal transmission, UVLO for all power supplies Electrical, 5V-CMOS, Galv.

IFS100V12PT4 Datasheet (522.90 KB)
