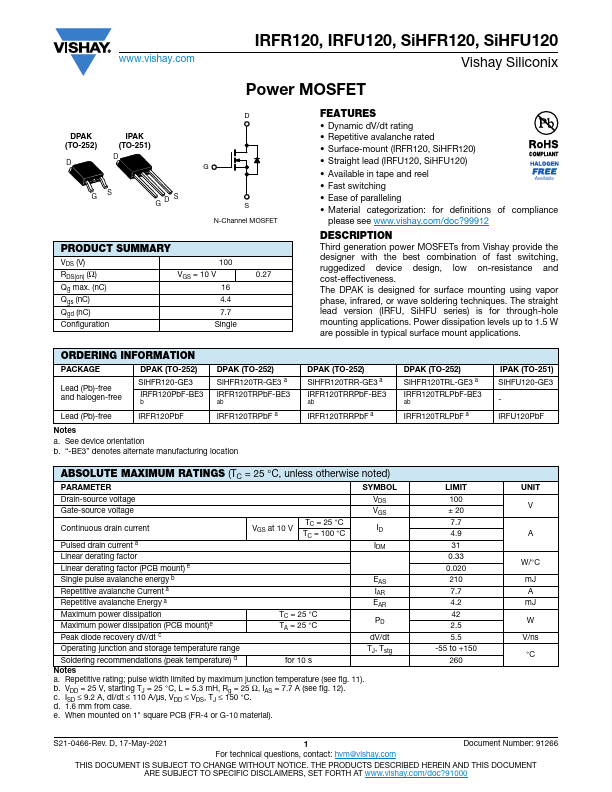

Part number: IRFR120
Manufacturer: Vishay (https://www.vishay.com/) Siliconix
File Size: 821.41KB
Download: 📄 Datasheet
Description: Power MOSFET
* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Surface Mount (IRFR120, SiHFR120)
* Straight Lead (IRFU120, SiHFU120)
* Available in Tape and Re.
Power dissipation levels up to 1.5 W are possible in typical surface mount applications.
ORDERING INFORMATION
Package.
Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or.
Image gallery
