IRFU120, IRFR120 Power MOSFET

IRFU120 Description

www.vishay.com IRFR120, IRFU120, SiHFR120, SiHFU120 Vishay Siliconix Power MOSFET DPAK (TO-252) D IPAK (TO-251) D D G S G GD S S N-Channel MOS.
Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

IRFU120 Features

* Dynamic dV/dt rating
* Repetitive avalanche rated
* Surface-mount (IRFR120, SiHFR120)
* Straight lead (IRFU120, SiHFU120)
* Available in tape and reel
* Fast switching Available
* Ease of paralleling
* Material categorization:

IRFU120 Applications

* Power dissipation levels up to 1.5 W are possible in typical surface mount applications. ORDERING INFORMATION PACKAGE Lead (Pb)-free and halogen-free DPAK (TO-252) SiHFR120-GE3 IRFR120PbF-BE3 b DPAK (TO-252) SiHFR120TR-GE3 a IRFR120TRPbF-BE3 ab Lead (Pb)-free IRFR120PbF IRFR120TRPbF a Notes

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRFU120, IRFR120. Please refer to the document for exact specifications by model.

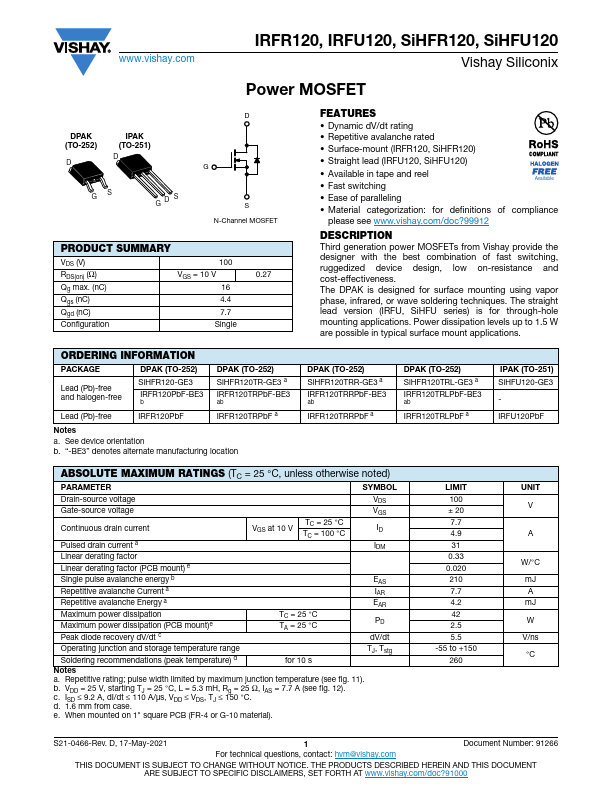

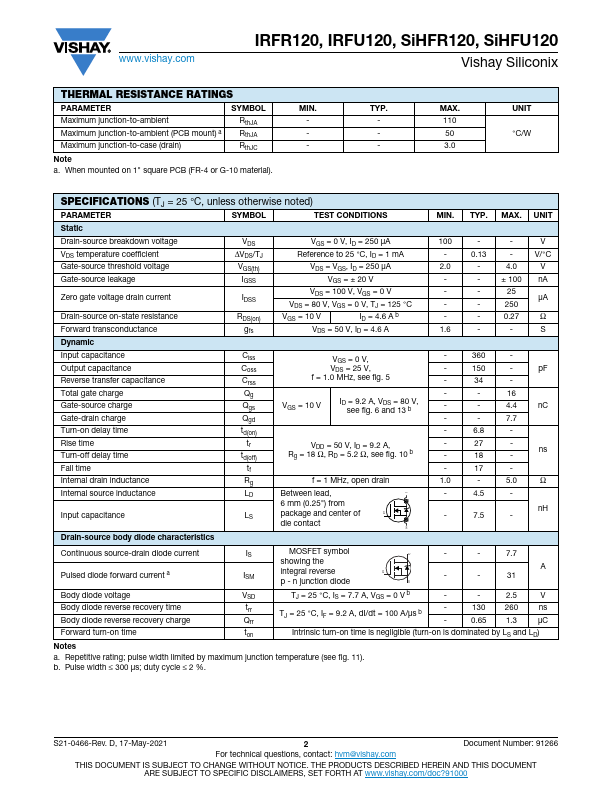

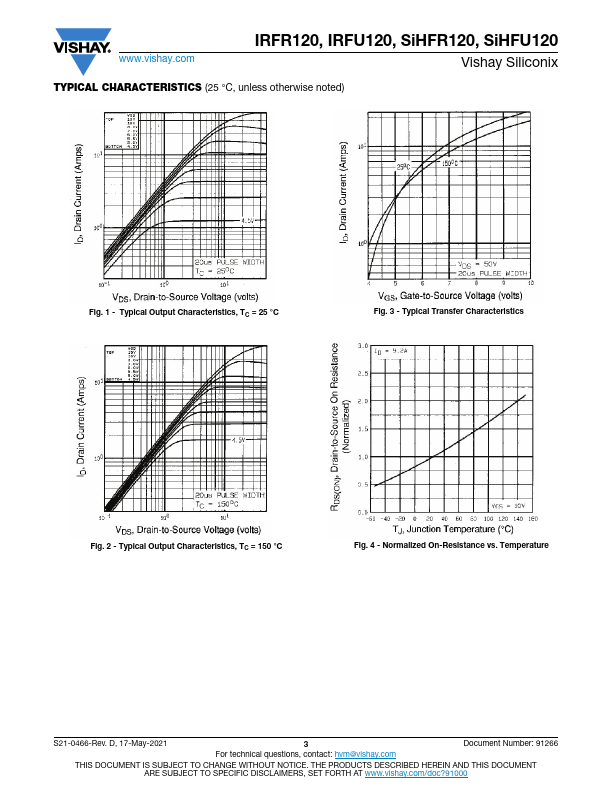

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFU120, IRFR120
Manufacturer
Vishay ↗ Siliconix
File Size
830.84 KB
Datasheet
IRFR120_VishaySiliconix.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRFU120, IRFR120.
Please refer to the document for exact specifications by model.
