SI3422DV Datasheet - Vishay Siliconix

SI3422DV N-Channel MOSFET

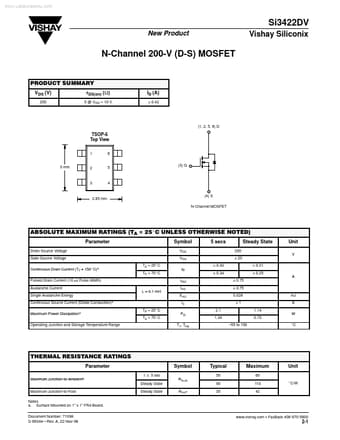

www.DataSheet4U.com Si3422DV New Product Vishay Siliconix N-Channel 200-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 200 rDS(on) (W) 5 @ VGS = 10 V ID (A) "0.42 (1, 2, 5, 6) D TSOP-6 Top View 1 6 (3) G 3 mm 2 5 3 4 (4) S N-Channel MOSFET 2.85 mm ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150_C)a Pulsed Drain Current (10 ms Pulse Width) Avalanche Current Single Avalanche Energy Continuous So.

SI3422DV_VishaySiliconix.pdf
