SIC734CD9 Datasheet - Vishay Siliconix

Fast Switching MOSFETs

SIC734CD9 Features

* Low-side MOSFET control pin for pre-bias start-up

* Undervoltage Lockout for safe operation

* Internal boostrap diode reduces component count

* Break-Before-Make operation

* Turn-on/Turn-off Capability

* Compatible with any single or multi-phase PWM

SIC734CD9 General Description

The SiC734CD9 is an integrated solution which contains two PWM-optimized MOSFETs (high side and low side MOSFETs) and a driver IC. Integrating the driver allows better optimization of Power MOSFETs. This minimizes the losses and provides better performance at higher frequency. The SiC734CD9 is packe.

SIC734CD9 Datasheet (266.69 KB)

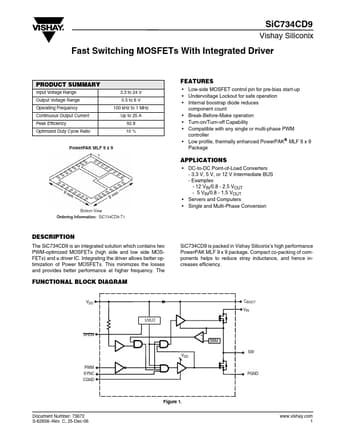

SIC734CD9 Datasheet Preview — Preview of SIC734CD9 PDF

Datasheet Details

Part number:

SIC734CD9

Manufacturer:

Vishay ↗ Siliconix

File Size:

266.69 KB

Description:

Fast switching mosfets.
SiC734CD9 Vishay Siliconix Fast Switching MOSFETs With Integrated Driver PRODUCT SUMMARY Input Voltage Range Output Voltage Range Operating Frequenc.
