SIC762CD Datasheet, Stage, Vishay Siliconix

SIC762CD Features

  • Stage
  • Integrated Gen III MOSFETs and DrMOS compliant gate driver IC
  • Enables Vcore switching at 1 MHz
  • Easily achieve > 90 % efficiency in multi-phase, low output

PDF File Details

Part number:

SIC762CD

Manufacturer:

Vishay ↗ Siliconix

File Size:

617.79kb

Download:

📄 Datasheet

Description:

Integrated drmos power stage. The SiC762CD is an integrated solution that contains PWM optimized n-channel MOSFETs (high side and low side) and a full featured MOS

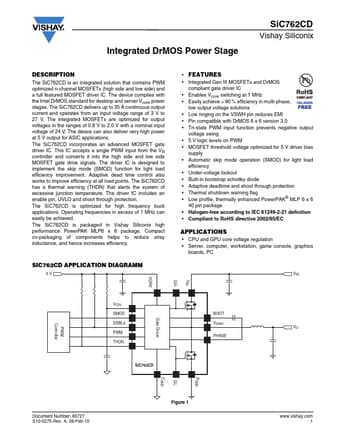

Datasheet Preview: SIC762CD 📥 Download PDF (617.79kb)
Page 2 of SIC762CD Page 3 of SIC762CD

SIC762CD Application

  • Applications The SiC762CD incorporates an advanced MOSFET gate driver IC. This IC accepts a single PWM input from the VR controller and converts it
