SIC769 - Integrated DrMOS Power Stage

Vishay Siliconix

📥 Download Datasheet

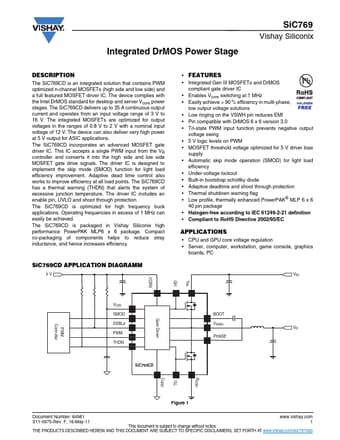

SIC769 Datasheet Preview — Preview of SIC769 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SIC769
Manufacturer	Vishay ↗ Siliconix
File Size	455.05 KB
Description	Integrated DrMOS Power Stage
Datasheet	SIC769_VishaySiliconix.pdf

SIC769 Product details

Description

The SiC769CD is an integrated solution that contains PWM optimized n-channel MOSFETs (high side and low side) and a full featured MOSFET driver IC.

Features

S.
Integrated Gen III MOSFETs and DrMOS compliant gate driver IC.
Enables Vcore switching at 1 MHz.
Easily achieve > 90 % efficiency in multi-phase, low output voltage solutions.
Low ringing on the VSWH pin reduces EMI.
Pin compatible with DrMOS 6 x 6 version 3.0.
Tri-state PWM input function prevents negative output voltage swing.
5 V logic levels on PWM.
MOSFET threshold voltage optimized for 5 V driver bias supply.
