SS15P3S, SMD Photovoltaic Solar Cell Protection Schottky Rectifier

www.DataSheet.co.kr New Product SS15P3S Vishay General Semiconductor SMD Photovoltaic Solar Cell Protection Schottky Rectifier .

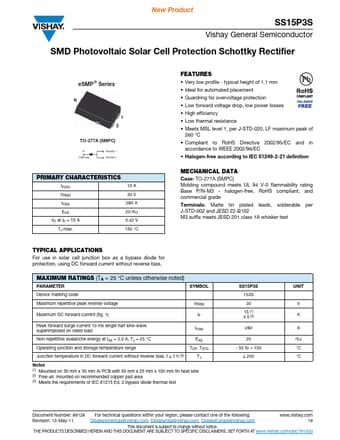

datasheet Preview Page 1 from Datasheet4u.com

SS15P3S_VishaySiliconix.pdf

SS15P3S Datasheet Preview — Preview of SS15P3S PDF

Datasheet Details

Part number:

SS15P3S

Manufacturer:

Vishay ↗ Siliconix

File Size:

150.25 KB

Description:

SMD Photovoltaic Solar Cell Protection Schottky Rectifier

Features

* eSMP Series K ®
* Very low profile - typical height of 1.1 mm
* Ideal for automated placement
* Guardring for overvoltage protection
* Low forward voltage drop, low power losses 1 2
* High efficiency
* Low thermal resistance
* Meets MSL level

Applications

* For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Device marking code Maximum repetitive peak reverse voltage Maximum DC forward current (fig. 1) Peak forward surge curren
