SSA23L

High Current Density Surface Mount Schottky Rectifier

SSA23L Features

* Low profile package

* Ideal for automated placement

* Guardring for overvoltage protection

* Low power losses, high efficiency

* Low forward voltage drop

* High surge capability

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

SSA23L Datasheet (76.42 KB)

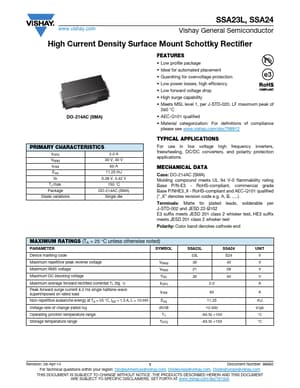

Preview of SSA23L PDF

Datasheet Details

Part number:

SSA23L

Manufacturer:

Vishay ↗ Siliconix

File Size:

76.42 KB

Description:

High current density surface mount schottky rectifier.
www.vishay.com SSA23L, SSA24 Vishay General Semiconductor High Current Density Surface Mount Schottky Rectifier DO-214AC (SMA) PRIMARY CHARACTERIS.
