SUB40N06-25L N-Channel MOSFET

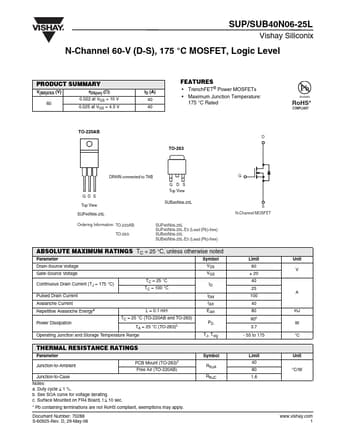

📥 Download Datasheet Datasheet Preview Page 1

Description

SUP/SUB40N06-25L Vishay Siliconix N-Channel 60-V (D-S), 175 °C MOSFET, Logic Level PRODUCT SUMMARY V(BR)DSS (V) rDS(on) (Ω) 60 0.022 at VGS = 10 V.

📥 Download Datasheet

Preview of SUB40N06-25L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* TrenchFET® Power MOSFETs
* Maximum Junction Temperature: 175 °C Rated TO-263 D Available RoHS
* COMPLIANT DRAIN connected to TAB GD S Top View SUP40N06-25L G DS Top View SUB40N06-25L Ordering Information: TO-220AB: TO-263: SUP40N06-25L SUP40N06-25L-E3 (Lead (Pb)-free) SUB
