SUP65P04-15 Datasheet - Vishay Siliconix

SUP65P04-15 P-Channel MOSFET

SUP/SUB65P04-15 New Product Vishay Siliconix P-Channel 40-V (D-S) 175_C MOSFET PRODUCT SUMMARY VDS (V) 40 0.023 @ VGS = 4.5 V 50 rDS(on) (W) 0.015 @ VGS = 10 V ID (A) 65 TO-220AB S TO-263 G DRAIN connected to TAB G G D S Top View SUP65P04-15 SUB65P04-15 P-Channel MOSFET D S Top View D ABSOLUTE MAXIMUM RATINGS (TC = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Dra.

SUP65P04-15 Datasheet (57.45 KB)

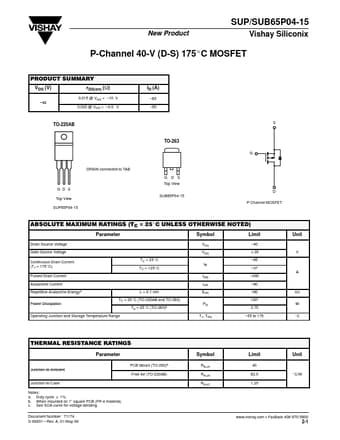

Preview of SUP65P04-15 PDF
SUP65P04-15 Datasheet Preview Page 2 SUP65P04-15 Datasheet Preview Page 3

Datasheet Details

Part number:

SUP65P04-15

Manufacturer:

Vishay ↗ Siliconix

File Size:

57.45 KB

Description:

P-channel mosfet.
