SiHL510, Power MOSFET

Power MOSFET IRL510, SiHL510 Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) 100 VGS = 5.0 V 6.1 Qgs (nC) 2.6 Qgd (nC) 3.3.
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

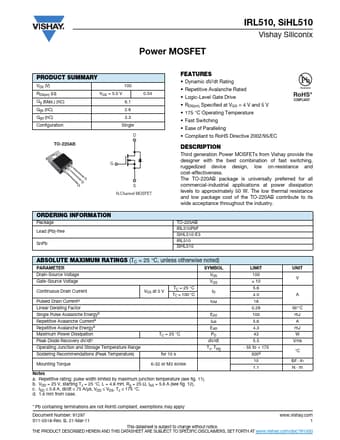

datasheet Preview Page 1 from Datasheet4u.com

SiHL510_VishaySiliconix.pdf

SiHL510 Datasheet Preview — Preview of SiHL510 PDF

Datasheet Details

Part number:

SiHL510

Manufacturer:

Vishay ↗ Siliconix

File Size:

721.63 KB

Description:

Power MOSFET

Features

* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Logic-Level Gate Drive
* RDS(on) Specified at VGS = 4 V and 5 V
* 175 °C Operating Temperature
* Fast Switching
* Ease of Paralleling
* Compliant to RoHS Directive 2002/95/EC Availa

Applications

* at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry. TO-220AB IRL510PbF SiHL510-E3 IRL510 SiHL510 ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBO
