SIHL530S

Power MOSFET

SIHL530S Features

* Halogen-free According to IEC 61249-2-21 Definition

* Surface Mount

* Available in Tape and Reel

* Dynamic dV/dt Rating

* Repetitive Avalanche Rated

* Logic Level Gate Drive

* RDS(on) Specified at VGS = 4 V and 5 V

* 175 °C Operating

SIHL530S General Description

Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The D2PAK (TO-263) is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest.

SIHL530S Datasheet (299.55 KB)

Rating: 1 ★ (2 votes)

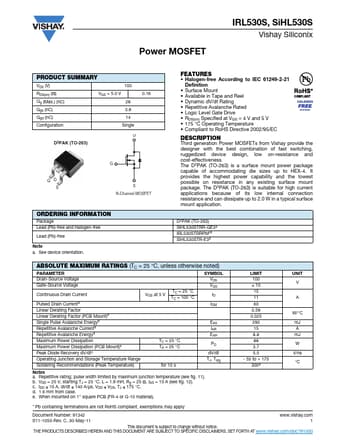

Preview of SIHL530S PDF

Datasheet Details

Part number:

SIHL530S

Manufacturer:

Vishay ↗

File Size:

299.55 KB

Description:

Power mosfet.
Power MOSFET IRL530S, SiHL530S Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) () Qg (Max.) (nC) 100 VGS = 5.0 V 28 Qgs (nC) 3.8 Qgd (nC) 14.
