TDSR116

7 mm Seven Segment Display

Vishay Telefunken

TDSR116 Features

* D D D D D D D Evenly lighted segments Grey package surface Untinted segments Luminous intensity categorized Yellow and green categorized for color Wide viewing angle Suitable for DC and high peak current Applications Panel meters Test- and measure- equipment Point-of-sale terminals Control units D

TDSR116 General Description

The TDS.11.. series are 7 mm character seven segment LED displays in a very compact package. The displays are designed for a viewing distance up to 3 meters and available in four bright colors. The grey package surface and the evenly lighted untinted segments provide an optimum on-off contrast. All .

TDSR116 Datasheet (126.58 KB)

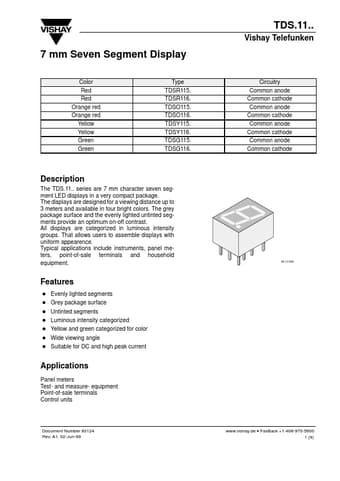

TDSR116 Datasheet Preview — Preview of TDSR116 PDF

Datasheet Details

Part number:

TDSR116

Manufacturer:

Vishay ↗ Telefunken

File Size:

126.58 KB

Description:

7 mm seven segment display.
TDS.11.. Vishay Telefunken 7 mm Seven Segment Display Color Red Red Orange red Orange red Yellow Yellow Green Green Type TDSR115. TDSR116. TDSO115. T.
