TDSR0760

High Intensity Red Low Current Seven Segment Display

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Vishay Semiconductors TDSR0760 DISPLAY LED 7-SEG 0.28" SGL RED DigiKey 301 10000 units
$0.83

TDSR0760 Datasheet (198.05 KB)

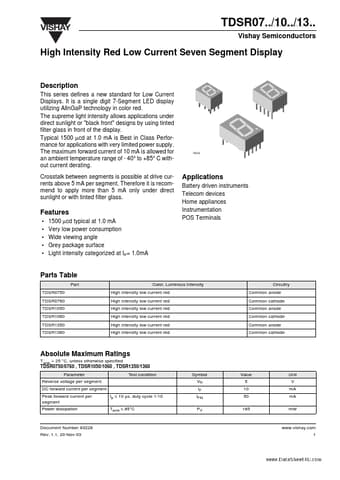

Preview of TDSR0760 PDF Datasheet

Datasheet Details

Part number:

TDSR0760

Manufacturer:

Vishay ↗ Intertechnology

File Size:

198.05 KB

Description:

High intensity red low current seven segment display

TDSR0760 Features

* 1500 µcd typical at 1.0 mA Very low power consumption Wide viewing angle Grey package surface Light intensity categorized at IF= 1.0mA Parts Table Part TDSR0750 TDSR0760 TDSR1050 TDSR1060 TDSR1350 TDSR1360 Color, Luminous Intensity High intensity lo

TDSR0760 General Description

This series defines a new standard for Low Current Displays. It is a single digit 7-Segment LED display utilizing AllnGaP technology in color red. The supreme light intensity allows applications under direct sunlight or "black front" designs by using tinted filter glass in front of the display. Typi.
