TDSR1060, TDSR0750 High Intensity Red Low Current Seven Segment Display

TDSR1060 Description

VISHAY TDSR07../10../13..www.DataSheet4U.com Vishay Semiconductors High Intensity Red Low Current Seven Segment Display .
This series defines a new standard for Low Current Displays.

TDSR1060 Features

* 1500 µcd typical at 1.0 mA Very low power consumption Wide viewing angle Grey package surface Light intensity categorized at IF= 1.0mA Parts Table Part TDSR0750 TDSR0760 TDSR1050 TDSR1060 TDSR1350 TDSR1360 Color, Luminous Intensity High intensity lo

TDSR1060 Applications

* under direct sunlight or "black front" designs by using tinted filter glass in front of the display. Typical 1500 µcd at 1.0 mA is Best in Class Performance for applications with very limited power supply. The maximum forward current of 10 mA is allowed for an ambient temperature range of - 40° to +

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TDSR1060, TDSR0750. Please refer to the document for exact specifications by model.

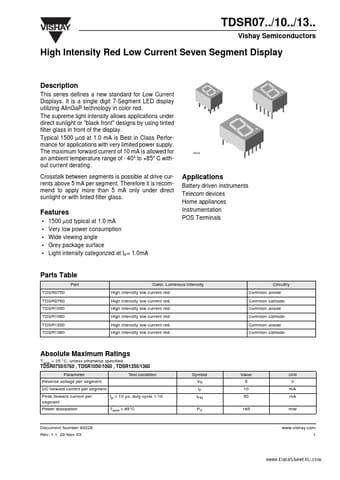

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TDSR1060, TDSR0750
Manufacturer
Vishay ↗ Intertechnology
File Size
198.05 KB
Datasheet
TDSR0750_VishayIntertechnology.pdf
Description
High Intensity Red Low Current Seven Segment Display
Note
This datasheet PDF includes multiple part numbers: TDSR1060, TDSR0750.
Please refer to the document for exact specifications by model.
