TDSR1360 Datasheet, Display, Vishay Intertechnology

TDSR1360 Features

• Display
• 1500 µcd typical at 1.0 mA Very low power consumption Wide viewing angle Grey package surface Light intensity categorized at IF= 1.0mA

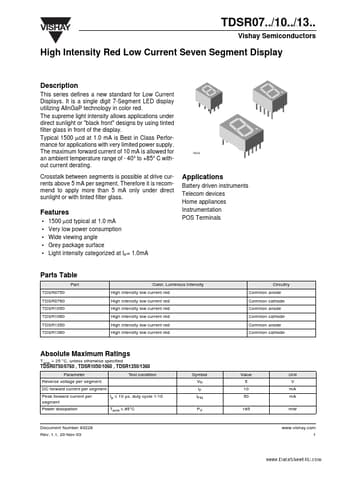

PDF File Details

Part number:

TDSR1360

Manufacturer:

Vishay ↗ Intertechnology

File Size:

198.05kb

Download:

📄 Datasheet

Description:

High intensity red low current seven segment display. This series defines a new standard for Low Current Displays. It is a single digit 7-Segment LED display utilizing AllnGaP technology

TDSR1360 Application

• Applications under direct sunlight or "black front" designs by using tinted filter glass in front of the display. Typical 1500 µcd at 1.0 mA is Best
