TSDF1205RW

Silicon NPN Planar RF Transistor

TSDF1205RW Features

* D Low power applications D Very low noise figure D High transition frequency fT = 12 GHz 2 1 1 2 94 9279 13 579 94 9278 95 10831 3 4 4 3 TSDF1205 Marking: F05 Plastic case (SOT 143) 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter TSDF1205R Marking: 05F Plastic case (SOT 143R) 1 = Collect

TSDF1205RW Datasheet (81.54 KB)

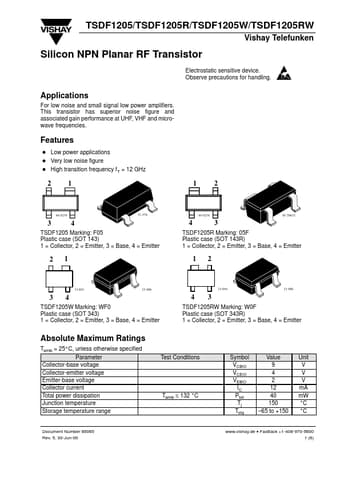

Preview of TSDF1205RW PDF

Datasheet Details

Part number:

TSDF1205RW

Manufacturer:

Vishay ↗ Telefunken

File Size:

81.54 KB

Description:

Silicon npn planar rf transistor.
TSDF1205/TSDF1205R/TSDF1205W/TSDF1205RW Vishay Telefunken Silicon NPN Planar RF Transistor Electrostatic sensitive device. Observe precautions for ha.
