1N5819 - Schottky Barrier Plastic Rectifier

This page provides the datasheet information for the 1N5819, a member of the 1N5817 Schottky Barrier Plastic Rectifier family.

Datasheet Summary

Features

  • Guardring for overvoltage protection.
  • Very small conduction losses.
  • Extremely fast switching.
  • Low forward voltage drop.
  • High frequency operation.
  • Solder dip 275 °C max. 10 s, per JESD 22-B106.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

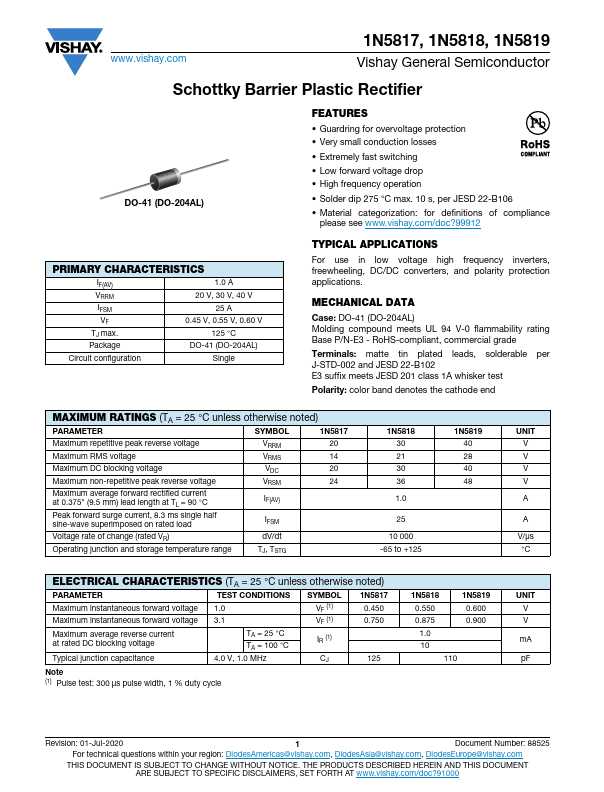

Datasheet preview – 1N5819

Datasheet Details

Part number 1N5819
Manufacturer Vishay
File Size 70.42 KB
Description Schottky Barrier Plastic Rectifier
Datasheet download datasheet 1N5819 Datasheet

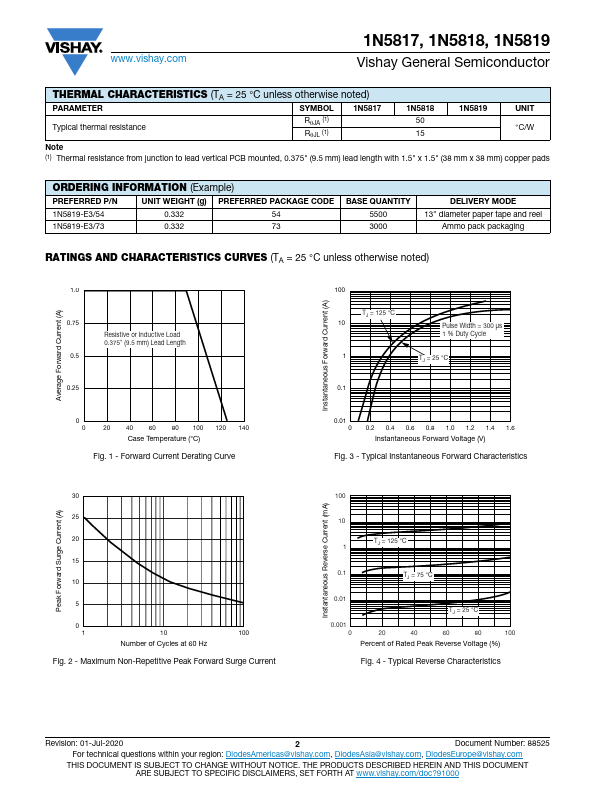

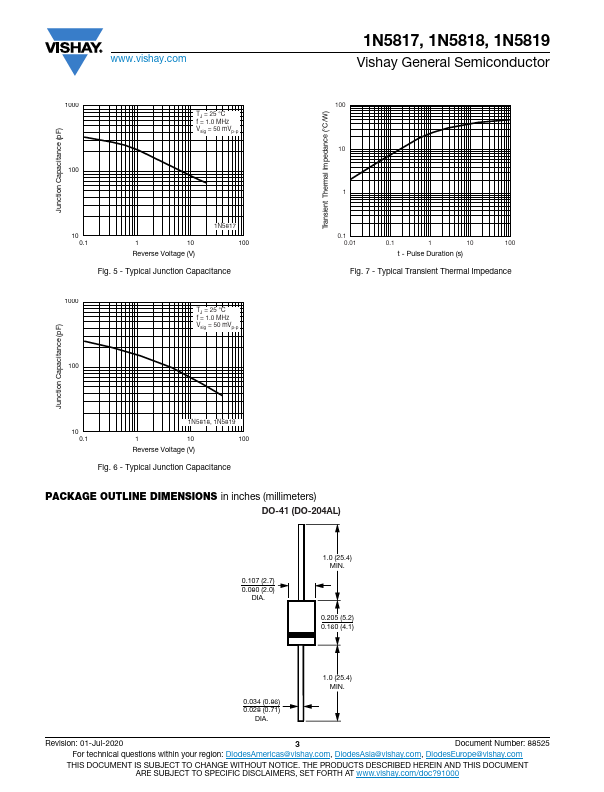

Additional preview pages of the 1N5819 datasheet.

📁 Similar Datasheet

  • 1N5819 - Low drop power Schottky rectifier (STMicroelectronics)
  • 1N5819 - Schottky barrier diodes (NXP)
  • 1N5819 - SCHOTTKY BARRIER RECTIFIERS (MotorolaInc)
  • 1N5819 - 1.0A SCHOTTKY BARRIER RECTIFIER (Diodes)
  • 1N5819 - SCHOTTKY BARRIER RECTIFIERS (PAN JIT)
  • 1N5819 - 1.0A SCHOTTKY BARRIER DIODE (WON-TOP)
  • 1N5819 - SCHOTTKY DIODES (AiT Components)
  • 1N5819 - Schottky Barrier Rectifier Diodes (Kexin)
  • 1N5819 - Schottky Barrier Rectifiers (Taiwan Semiconductor)
  • 1N5819 - Schottky Barrier Rectifier (NTE)
Other Datasheets by Vishay
  • 1N5817 - Schottky Barrier Plastic Rectifier
  • 1N5818 - Schottky Barrier Plastic Rectifier
  • 1N5820 - Schottky Barrier Plastic Rectifier
  • 1N5821 - Schottky Barrier Plastic Rectifier
  • 1N5822 - Schottky Barrier Plastic Rectifier
  • 1N5059 - Standard Avalanche Sinterglass Diode
  • 1N5059GP - Glass Passivated Junction Plastic Rectifier
  • 1N5060 - Standard Avalanche Sinterglass Diode

Full PDF Text Transcription

Click to expand full text
www.vishay.com 1N5817, 1N5818, 1N5819 Vishay General Semiconductor Schottky Barrier Plastic Rectifier DO-41 (DO-204AL) PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. Package 1.0 A 20 V, 30 V, 40 V 25 A 0.45 V, 0.55 V, 0.60 V 125 °C DO-41 (DO-204AL) Circuit configuration Single FEATURES • Guardring for overvoltage protection • Very small conduction losses • Extremely fast switching • Low forward voltage drop • High frequency operation • Solder dip 275 °C max. 10 s, per JESD 22-B106 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 TYPICAL APPLICATIONS For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
