2N4416 N-Channel JFETs

2N4416 Description

2N4416/2N4416A/SST4416 Vishay Siliconix N-Channel JFETs PRODUCT SUMMARY Part Number 2N4416 2N4416A SST4416 VGS(off) (V) *v6 *2.5 to.
The 2N4416/2N4416A/SST4416 n-channel JFETs are designed to provide high-performance amplification at high frequencies.

2N4416 Features

* D Excellent High-Frequency Gain: 2N4416/A, Gps 13 dB (typ) @ 400 MHz D Very Low Noise: 3 dB (typ) @ 400 MHz D Very Low Distortion D High AC/DC Switch Off-Isolation BENEFITS D Wideband High Gain D Very High System Sensitivity D High Quality of Amplification D High-Speed Switching Capability D High L

📥 Download Datasheet

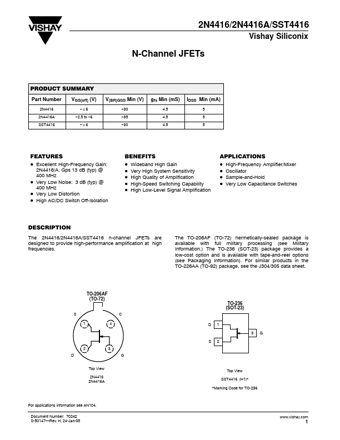

Preview of 2N4416 PDF
datasheet Preview Page 2 datasheet Preview Page 3
