2N441 - PNP Transistor

2N441 Description

2N441 (GERMANIUM) 2N442 2N443 ~ CASE 5 (10-36) .PNP germanium power transistors for power switching and amplifier applications.Power and temper.

2N441 Applications

* Power and temperature ratings exceed EIA registration. MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Base Current - Continuous Emitter Current - Continuous Symbol VCES VCB VEB IB IE Total Device Dissipation @ TC = 25°C PD Operating Junction Temper

📥 Download Datasheet

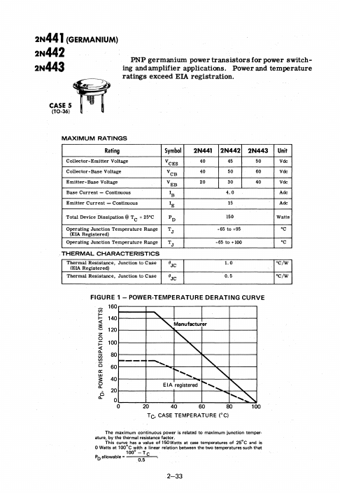

Preview of 2N441 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N441
Manufacturer
Motorola
File Size
182.77 KB
Datasheet
2N441-Motorola.pdf
Description
PNP Transistor
