2N6660JAN - N-Channel MOSFET

2N6660JAN Description

2N6660JAN/JANTX/JANTXV Vishay Siliconix JAN Qualified N-Channel 60-V (D-S) MOSFET PRODUCT SUMMARY V(BR)DSS Min (V) rDS(on) Max (Ω) 60 3 at VGS = 10 V.

2N6660JAN Features

* Military Qualified
* Low On-Resistence: 1.3 Ω
* Low Threshold: 1.7 V
* Low Input Capacitance: 35 pF
* Fast Switching Speed: 8 ns
* Low Input and Output Leakage BENEFITS
* Guaranteed Reliability
* Low Offset Voltage
* Low-Volta

2N6660JAN Applications

* Military Applications
* Direct Logic-Level Interface: TTL/CMOS
* Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc.
* Battery Operated Systems
* Solid-State Relays ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted P

📥 Download Datasheet

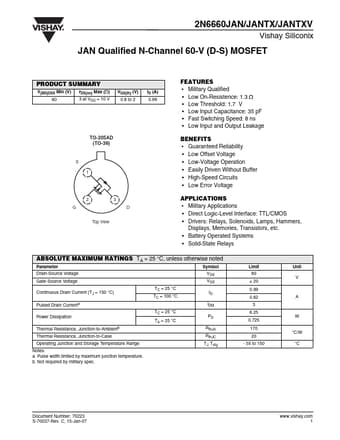

Preview of 2N6660JAN PDF
