2N6661JANTX, 2N6661 - N-Channel MOSFET

2N6661JANTX Description

2N6661, 2N6661-2, 2N6661JANTX, 2N6661JANTXV www.vishay.com Vishay Siliconix N-Channel 90 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () at VGS.
DSCC PART NUMBER Commercial Commercial, Lead (Pb)-free wwSwee.

2N6661JANTX Features

* Military Qualified
* Low On-Resistence: 3.6 
* Low Threshold: 1.6 V
* Low Input Capacitance: 35 pF
* Fast Switching Speed: 6 ns
* Low Input and Output Leakage BENEFITS
* Guaranteed Reliability
* Low Offset Voltage
* Low-Volta

2N6661JANTX Applications

* Hi-Rel Systems
* Direct Logic-Level Interface: TTL/CMOS
* Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc.
* Battery Operated Systems

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2N6661JANTX, 2N6661. Please refer to the document for exact specifications by model.

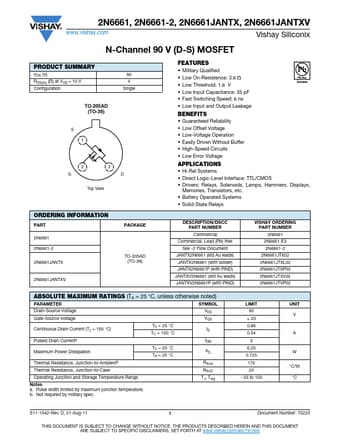

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N6661JANTX, 2N6661
Manufacturer
Vishay ↗
File Size
124.84 KB
Datasheet
2N6661_VishaySiliconix.pdf
Description
N-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: 2N6661JANTX, 2N6661.
Please refer to the document for exact specifications by model.
