2N7000/2N7002, VQ1000J/P, BS170
Vishay Siliconix
N-Channel 60-V (D-S) MOSFET

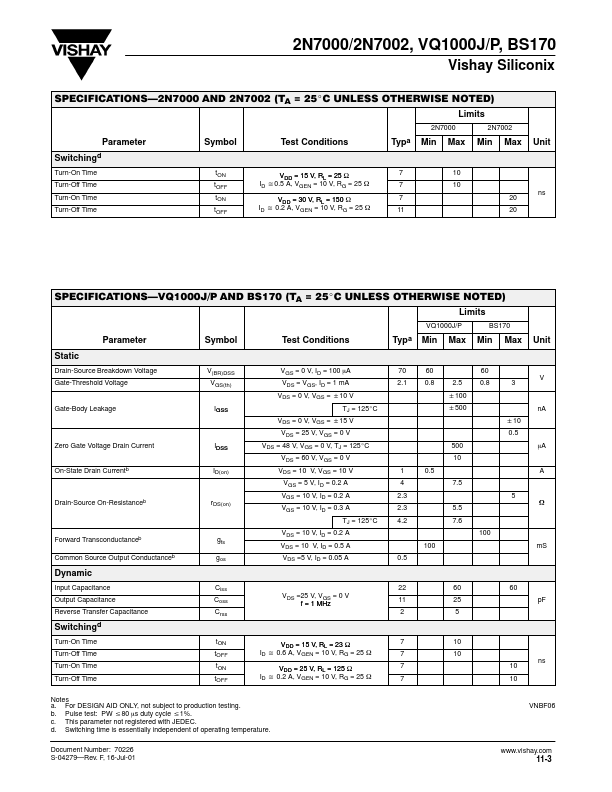

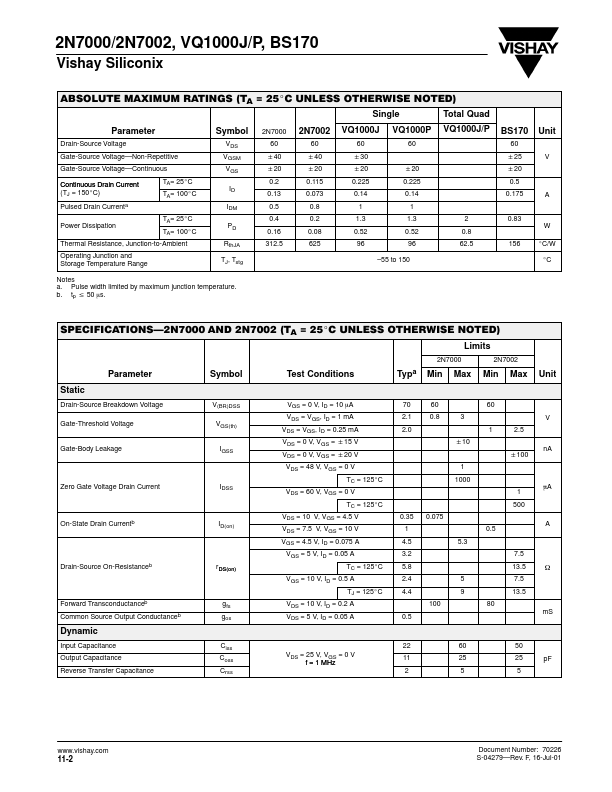

PRODUCT SUMMARY
Part Number V(BR)DSS Min (V) rDS(on) Max (W)
2N7000 2N7002 VQ1000J VQ1000P BS170
5 @ VGS = 10 V
7.5 @ VGS = 10 V
60
5.5 @ VGS = 10 V
5.5 @ VGS = 10 V
5 @ VGS = 10 V
VGS(th) (V)
0.8 to 3 1 to 2.5 0.8 to 2.5 0.8 to 2.5 0.8 to 3
ID (A)
0.2 0.115 0.225 0.225
0.5
FEATURES
D Low On-Resistance: 2.5 W D Low Threshold: 2.1 V D Low Input Capacitance: 22 pF D Fast Switching Speed: 7 ns D Low Input and Output Leakage
BENEFITS
D Low Offset Voltage D Low-Voltage Operation D Easily Driven Without Buffer D High-Speed Circuits D Low Error Voltage
APPLICATIONS
D Direct Logic-Level Interface: TTL/CMOS D Drivers: Relays, Solenoids, Lamps, Hammers,
Displays, Memories, Transistors, etc.
