2N7002AQ - N-channel MOSFET

Datasheet Summary

Description

This MOSFET is designed to meet the stringent requirements of Automotive applications.

Motor Control Power Management Functions SOT23 2N7002AQ N-CHANNEL ENHANCEMENT MODE MOSFET

Features

Low On-Resistance.
Low Gate Threshold Voltage.
Low Input Capacitance.
Fast Switching Speed.
Small Surface Mount Package.
ESD Protected Gate, 1.2kV HBM.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen- and Antimony-Free. “Green” Device (Note 3).
The 2N7002AQ is suitable for automotive.

Datasheet Details

Part number	2N7002AQ
Manufacturer	DIODES
File Size	218.72 KB
Description	N-channel MOSFET
Datasheet	2N7002AQ Datasheet

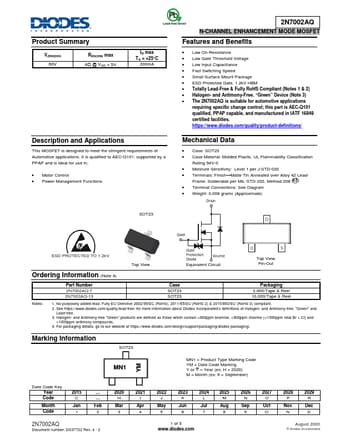

Additional preview pages of the 2N7002AQ datasheet.

📁 Similar Datasheet

2N7002A - N-channel FET (KEC)

2N7002A - N-Channel MOSFET (MCC)

2N7002 - N-Channel 60V MOSFET (Vishay)

2N7002 - N-channel FET (Fairchild Semiconductor)

2N7002 - N-Channel Power Mosfet (GME)

2N7002 - 300mA N-channel MOSFET (nexperia)

2N7002 - N-Channel MOSFET (MCC)

2N7002 - N-channel MOSFET (Microchip)

2N7002 - N-Channel Enhancement Mode Power MOSFET (Rectron)

2N7002 - N-Channel MOSFET (ST Microelectronics)

Full PDF Text Transcription

Click to expand full text

Product Summary V(BR)DSS 60V RDS(ON) max 6Ω @ VGS = 5V ID max TA = +25°C 200mA Description and Applications This MOSFET is designed to meet the stringent requirements of Automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: • Motor Control • Power Management Functions SOT23 2N7002AQ N-CHANNEL ENHANCEMENT MODE MOSFET Features and Benefits • Low On-Resistance • Low Gate Threshold Voltage • Low Input Capacitance • Fast Switching Speed • Small Surface Mount Package • ESD Protected Gate, 1.2kV HBM • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen- and Antimony-Free.
