6N136 Datasheet, Optocoupler, Vishay

6N136 Features

• Optocoupler
• Isolation test voltages: 5300 VRMS
• TTL compatible
• High bit rates: 1 Mbit/s
• High common-mode interference immunity
• Bandwidth 2 MHz

PDF File Details

Part number:

6N136

Manufacturer:

Vishay ↗

File Size:

238.50kb

Download:

📄 Datasheet

Description:

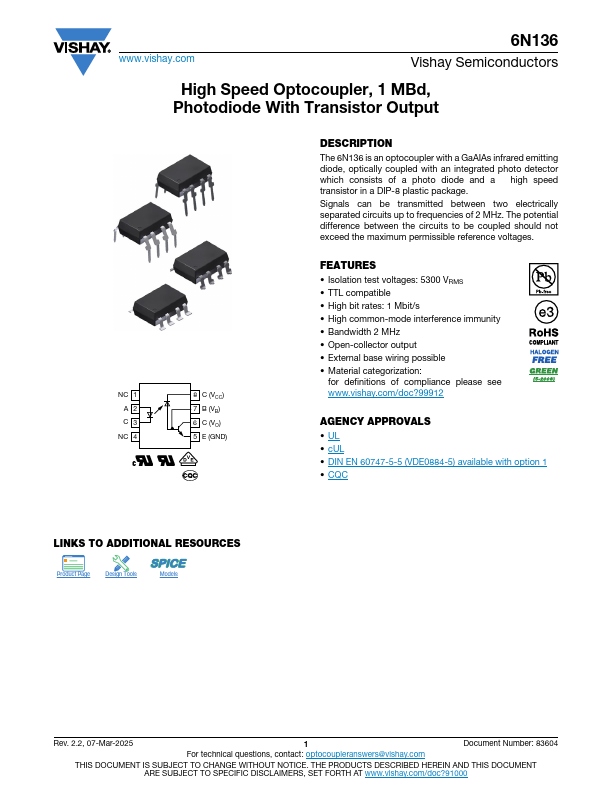

High speed optocoupler. The 6N135 and 6N136 are optocouplers with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which
