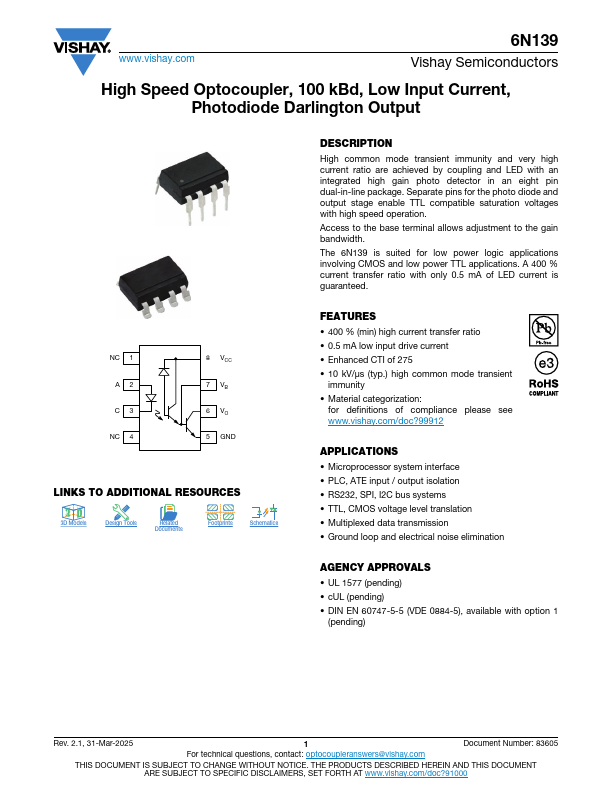

6N139 Datasheet, Optocoupler, Vishay

6N139 Features

• Optocoupler
• High current transfer ratio, 300 %
• Low input current, 0.5 mA
• High output current, 60 mA
• Isolation test voltage, 5300 VRMS
• TTL compatibl

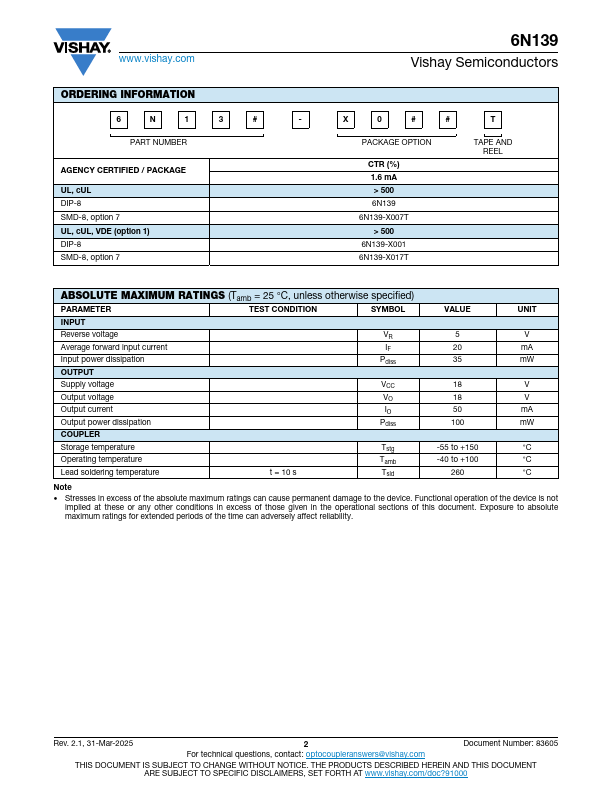

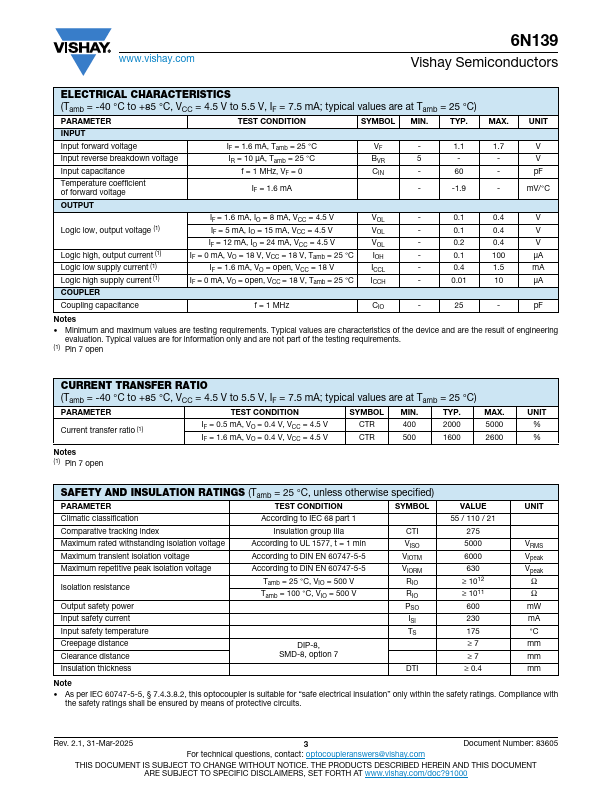

PDF File Details

Part number:

6N139

Manufacturer:

Vishay ↗

File Size:

234.77kb

Download:

📄 Datasheet

Description:

High speed optocoupler. High common mode transient immunity and very high current ratio together with 5300 VRMS insulation are achieved by coupling and LED w

6N139 Application

• Applications since t
